C0805W103KCRACTU -

SMD Multilayer Ceramic Capacitor, ArcShield™, 0805 [2012 Metric], 0.01 µF, 500 V, ± 10%, X7R

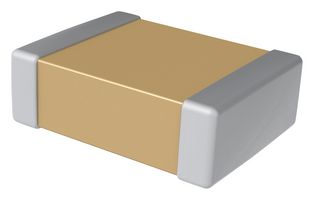

Obrázok slúži len na ilustračné účely. Prosím, pozrite si popis produktu.

Výrobca:
KEMET KEMET
Výrobcovo č. položky:
C0805W103KCRACTU
Objednávací kód:
2085220RL
Sortiment
ArcShield™ W Series FT-CAP
Známy ako aj:
C0805W103KCRAC7800
Karta technických údajov:
(EN)
Zobraziť všetky technické dokumenty

INFORMÁCIE O PRODUKTE

:
0805 [2012 Metric]
:
-55°C
:
125°C
:
500V
:
ArcShield™ W Series FT-CAP
:
-
:
10000pF
:
± 10%
:
Cut Tape
:
X7R
:
MSL 1 - Unlimited
Nájsť podobné produkty Vyberte a upravte atribúty vyššie na vyhľadanie podobných produktov.

Prehľad produktu

The ArcShield™ series high voltage surface mount Multilayer Ceramic Chip Capacitor in X7R dielectric is designed for use in high voltage applications susceptible to surface arcing (arc-over discharge). The phenomenon of surface arcing is caused by a high voltage gradient between the two termination surfaces or between one of the termination surfaces and the counter internal electrode structure within the ceramic body. It occurs most frequently at application voltages that meet or exceed 300V, in high humidity environments and in chip sizes with minimal bandwidth separation (creepage distance). This phenomenon can either damage surrounding components or lead to a breakdown of the dielectric material, ultimately resulting in a short-circuit condition (catastrophic failure mode). The highly reliable base metal dielectric system combined with unique internal shield electrode structure that is designed to suppress an arc-over event while increasing available capacitance.
  • Patented technology
  • Permanent internal arc protection
  • Protective surface coating not required
  • Base metal electrode (BME) dielectric system
  • Industry leading CV values
  • Exceptional performance at high frequencies
  • Low ESR and ESL
  • Non-polar device, minimizing installation concerns
  • 100% Pure matte tin-plated termination finish allowing for excellent solderability
  • SnPb plated termination finish option available (5% Pb minimum)
  • Operating temperature range from -55°C to +125°C

Známy ako aj

C0805W103KCRAC7800

Alternatívy

Porovnaj vybraté produkty
Číslo položky výrobcu
Objednávací kód
Výrobca alebo popis
Dostupné
Cena za
Množstvo
10 532 Na sklade

ks (dodávané na strihanej páske)

5+ 0,22 € 50+ 0,105 € 250+ 0,0831 € 500+ 0,0644 € viac...
