A000005

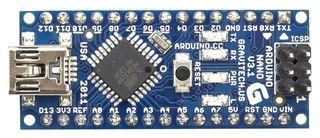

The A000005 is Version 3 of the Arduino Nanoboard, which is a small, breadboard-friendly board based on the ATmega328. It has similar functionality to the Arduino Duemilanove, but in a different package. It lacks only a DC power jack and is instead powered through the Mini-B USB connector. The Nano was designed and is being produced by Gravitech.

• Microcontroller ATmega328
• Operating voltage is 5V
• Maximum supply voltage 6 to 20V
• Digital I/O pins 14 (of which 6 provide PWM output)
• DC current per I/O pin 40 mA
• DC current for 3.3V pin 50 mA
• Flash memory16KB of which 2KB is used by Boot loader
• SRAM 1KB, EEPROM 512bytes
• Clock speed 16MHz
• USB Connector type mini B male

Poznámky

From January 2018 Arduino Nano will ship with upgraded bootloader. Arduino AVR Core 1.16.21 or later is required. Instructions to update are available here-https://www.arduino.cc/en/Guide/ArduinoNano.
