0468001.NR
Fuse, Surface Mount, 1 A, Slow Blow, 63 VAC, 63 VDC, 1206 [3216 Metric], Slo-Blo 468 Series
Potrebujete viac?
| Množstvo | |
|---|---|
| 10+ | 1,110 € |
| 100+ | 0,903 € |
| 500+ | 0,771 € |
| 1000+ | 0,718 € |
| 2500+ | 0,672 € |
INFORMÁCIE O PRODUKTE
Prehľad produktu

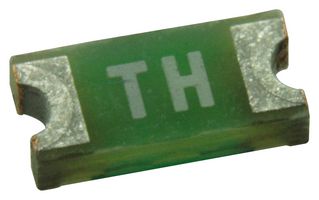

The 0468001.NR is a 1A/63V time delay surface mount Fuse with epoxy substrate body, 100% tin plated over nickel over copper termination and conformal coating element cover. The 468-series small (1206 size) thin-film device is designed for secondary protection of circuits used in space constrained applications. Time delay feature withstands high inrush currents and prevents nuisance openings. Top side marking allows visual verification of amperage rating. This fuse is compatible with lead-free solders and higher temperature profiles.
- 94.7mV Nominal voltage drop
- 0.0947W Nominal power dissipation
- 0.079Ω Nominal cold resistance
- -55 to 90°C Operating temperature range
Aplikácie
Safety, Portable Devices, Consumer Electronics, Computers & Computer Peripherals
Technické údaje
1A
63VAC
63VDC
1206 [3216 Metric]
50A
No SVHC (25-Jun-2020)
Slow Blow
63VAC
63VDC
Slo-Blo 468 Series
50A
Technické dokumenty (1)
Alternatívy pre 0468001.NR
Počet nájdených produktov: 1
Legislatíva a životné prostredie
Krajina, v ktorej boli vykonané posledné úpravy pred uvedením do predajaKrajina pôvodu:Philippines
Krajina, v ktorej boli vykonané posledné úpravy pred uvedením do predaja
RoHS
RoHS
Certifikát zhody produktu
