FT260.0305-102

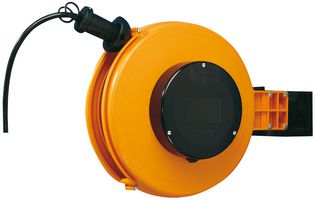

The FT260CC Spring Return Cable Reel from Marcaddy brings power to any application in a safe and efficient manner. It is a sturdy, all thermoplastic design made from high-quality materials, electrically insulated and corrosion resistant. Depending on requirements, the desired length of cable is unwound; the remaining cable is neatly stored on the reel - safe from dirt and damage. When the cable connection is no longer required, a short pull on the stopper and the cable neatly rewinds. A spring return cable reel means a safe and organized workplace.

• Rated 16A / 240V
• Supplied with 5m of 3 x 1.5 mm² cable
• Max Load: 8A** Wound / 16A** Unwound
• Robust, compact reel, ideal for ceiling/wall or floor mounting
• Adjustable ball stop
• Ratchet on/off facility
• 0.8mOhm contact resistance
• Universal mounting bracket
• IP20 protection
• High quality brass slip ring with silver contacts
• Operating temperature range of +5°C to +60°C

Poznámky

** No internal fuse block fitted. Please ensure the cable is suitably protected.
