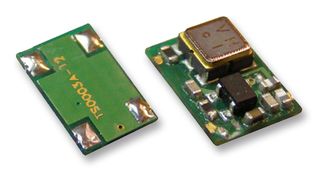

QAM-TX3-433

QAM-TX3-433 is an 433MHz AM transmitter module. The Quasar UK AM hybrid transmitter module provides a complete RF transmitter which can be used to transmit data at up to 3KHz from any standard CMOS/TTL source. The module is very simple to operate and offers a wide operating voltage range, the RF Power output increases in line with the voltage level applied to the module. Data can be supplied directly from a microprocessor or encoding device. Thus keeping the component count down and ensuring a low hardware cost. The modules are compatible with the Quasar UK Ltd. Operates in range of AM receivers to provide a complete solution.

• Complete RF transmitter
• SAW resonator
• Transmit range up to 50m
• CMOS / TTL input
• No adjustable components
• Stable operating frequency
• Wide operating voltage (3-12v)
• ASK modulation

Aplikácie

Wireless, Security, Industrial, RF Communications
