TAP1500

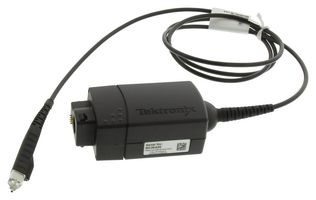

TAP1500 single-ended active FET probe (cable length 275inch). It provides excellent high-speed electrical and mechanical performance required for today's digital system designs. Suitable for applications such as high-speed digital systems design, component design and characterization, manufacturing engineering and test, educational research and signals with voltage swings up to 16V. Easy access to oscilloscope probe menu display for probe status/diagnostic information, and to control probe DC offset.

• Outstanding electrical performance, ≥1.5GHz probe bandwidth, <267ps rise time
• ≤1pF input capacitance, 1Mohm input resistance
• Versatile mechanical performance, robust design for reliability, easy to use
• Small compact probe head for probing small geometry circuit elements
• DUT attachment accessories enable connection to SMDs as small as 0.5mm pitch
• Connects directly to oscilloscopes with the TekVPI™ probe interface
• Provides automatic units scaling and readout on the oscilloscope display
• Remote GPIB/USB probe control through the oscilloscope
• Height is 0.19inch, width is 0.31inch, length is 2.30inch
• 0°C to +50°C operating temperature range
