Potrebujete viac?
Množstvo | |
---|---|
1+ | 32,200 € |
5+ | 31,560 € |
10+ | 30,910 € |
25+ | 30,270 € |
50+ | 29,620 € |
INFORMÁCIE O PRODUKTE
Prehľad produktu

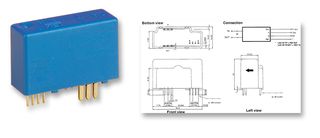

The LAS 50-TP is a Current Transducer with isolated plastic case construction. The LAS series current transducer features as an electronic measurement of currents DC, AC, pulsed, mixed with a galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit). It is used for AC variable speed and servo motor drives, static converters for DC motor drives, battery supplies, uninterruptible power supplies (UPS), switched mode power supplies (SMPS) and power supplies for welding applications.
- Unipolar voltage supply
- Compact design for PCB mounting
- Excellent accuracy
- Very good linearity
- Very low temperature drift
- Wide frequency bandwidth
- No insertion losses
- High immunity to external interference
- UL94V-0 Flammability rating
Aplikácie
Sensing & Instrumentation, Motor Drive & Control, Power Management, Industrial
Technické údaje
Voltage
4.75V
5.25V
1%
-150A to 150A
50A
Through Hole
85°C
No SVHC (27-Jun-2024)
5V
AC / DC / Pulsed
-150A to 150A
Eta
500ns
1%
-40°C
LAS Series
Technické dokumenty (3)
Legislatíva a životné prostredie
Krajina, v ktorej boli vykonané posledné úpravy pred uvedením do predajaKrajina pôvodu:Bulgaria
Krajina, v ktorej boli vykonané posledné úpravy pred uvedením do predaja
RoHS
RoHS
Certifikát zhody produktu
