DM164130-1

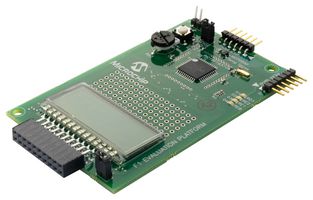

The DM164130-1 is a F1 evaluation platform demonstration/development tool for enhanced mid range PIC microcontrollers (PIC12F1xxx/PIC16F1xxx) and demonstrates the capabilities & low power enhancements of these new PIC microcontrollers. This provides a platform for general purpose development and gives you the ability to develop code for any PIC12F1xxx/PIC16F1xxx microcontroller. Quick & easy development is ensured with the integrated functionality including prototyping area, LCD control, system current monitoring, temperature sensing, Real Time Clock, LED drive, button control, and BLDC motor control.

• 44 pin development board with prototyping area
• Populated with a PIC16LF1937 featuring nanoWatt XLP technology
• 3Volt, 40 segment multimeter LCD glass
• 32KHz low power crystal
• In circuit serial programming interface for PICkit3
• PICkit serial interface
• Expansion header for the F1 BLDC motor add on
• MCP9800 temperature sensor
• Current monitoring connector to measure low power XLP capabilities

Aplikácie

Embedded Design & Development, Power Management, Motor Drive & Control

Obsah

F1 Evaluation Platform, Platform & Demonstration Guide, Source code for included demonstrations, Board schematics

Poznámky

90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
