Potrebujete viac?
Množstvo | |
---|---|
1+ | 52,780 € |
INFORMÁCIE O PRODUKTE
Prehľad produktu

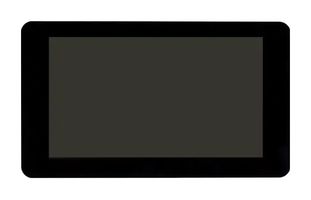

The Touch Display 2 is a 7" portrait display designed for the Raspberry Pi and is ideally suited for interactive projects such as entertainment systems and information displays. With the latest Pi OS, this high resolution screen supports up to five-finger touch and an onscreen keyboard allowing for full functionality without additional peripherals. The display only requires two connections; power from the GPIO port and a ribbon cable that connects to the DSI port on the Raspberry Pi computer (except Pi Zero models)
- 7" Portrait-style touchscreen for all Raspberry Pi models (except Pi Zero models)
- True multi-touch capacitive display supports up to five-finger simultaneous touch control
- High resolution, 24-bit 720x1280 pixel display
- Active display area: 155x88mm
- Anti-glare TFT LCD panel
- Dimensions: 189.32x120.24mm
Aplikácie
Consumer Electronics, Embedded Design & Development, Hobby & Education, Multimedia, Portable Devices
Obsah
Touch Display 2, standard size ribbon cable (original Pi models), mini ribbon cable (for Pi 5), power cable and screws
Upozornenia
Note: The Touch Display 2 is not compatible with display housings for the original official Touchscreen.
Poznámky
Please use RPI O/S version 6.6 or higher with Raspberry PI Touch Display 2
Technické údaje
7" Touchscreen Display
-
Raspberry Pi Boards
No SVHC (27-Jun-2024)
Technické dokumenty (1)
Legislatíva a životné prostredie
Krajina, v ktorej boli vykonané posledné úpravy pred uvedením do predajaKrajina pôvodu:China
Krajina, v ktorej boli vykonané posledné úpravy pred uvedením do predaja
RoHS
Certifikát zhody produktu
