ADZS-ICE-2000
JTAG Emulator, USB, 46 MHz, 3.3 V
Upozornite ma, keď bude produkt na sklade
| Množstvo | |
|---|---|
| 1+ | 1 928,000 € |
| 10+ | 1 889,000 € |
INFORMÁCIE O PRODUKTE
Prehľad produktu
ADZS-ICE-2000 is a high performance USB-based JTAG emulator. The emulator is used in conjunction with the CrossCore® Embedded Studio or VisualDSP++® development environments to create, test, and debug advanced processor application software on Analog Devices Blackfin® and Blackfin+™ processors. The emulator provides state-of-the-art support for JTAG-compliant Analog Devices processors.
- Plug and play, USB 2.0 compliant
- High-speed USB device
- USB bus-powered device
- Multiple processor I/O voltage support: 1.8V, 2.5V, and 3.3V compliance
- Multiprocessor support
- JTAG/SWD clock operation up to 46MHZ
Obsah

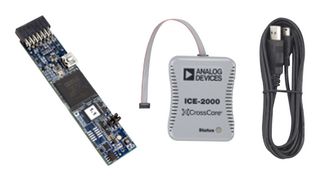

ICE-2000 emulator with enclosure, Cable assembly, 10-pin to 14-pin adapter used for connecting to the legacy 14-pin JTAG header, 2-meter USB standard-A to mini-B cable.
Poznámky
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Technické údaje
JTAG Emulator
Blackfin, SHARC
ICE-2000 Emulator with Enclosure, 6-inch Cable, 10 to 14pin Adapter, 2m USB A to Mini-B Cable
-
-
-
Multiprocessor Support, Plug & Play, USB Bus-powered, Software Controlled Target Reset
No SVHC (21-Jan-2025)
Technické dokumenty (3)
Legislatíva a životné prostredie
Krajina, v ktorej boli vykonané posledné úpravy pred uvedením do predajaKrajina pôvodu:Philippines
Krajina, v ktorej boli vykonané posledné úpravy pred uvedením do predaja
RoHS
RoHS
Certifikát zhody produktu
