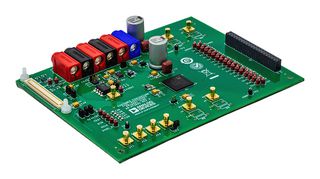

EVAL-AD45335SDZ

EVAL-AD45335SDZ is an evaluation board to evaluate the AD45335, 32-channel, 14bit, high voltage output DAC. The EVAL-AD45335SDZ is a full featured evaluation board that can be used to easily evaluate all the features of the EVALAD45335SDZ. The EVAL-AD45335SDZ is a 32-channel, 14-bit, high voltage output denseDAC® with an on-chip high voltage output amplifier. The AD45335 output voltage range is programmable using the REF_IN pin. The output range is 0V to 50V when REF_IN = 1V and 0V to 200V when REF_IN = 4V. Each amplifier can source 150µA. REF_IN is buffered internally on the AD45335 and must be driven from a stable reference source. The selected digital-to-analogue converter (DAC) register is written to using the 3-wire interface. The serial peripheral interface (SPI) operates at clock rates of up to 30MHz and is compatible with digital signal processing (DSP) and microcontroller interface standards.

• Full featured evaluation board for the AD45335
• On-board reference
• PC control in conjunction with the EVAL-SDP-CS1Z or EVALSDP-CB1Z system demonstration platform
• PC software for voltage output control
