VýrobcaDESCO EUROPE / VERMASON
Výrobcovo č. položky28500
Objednávací kód2062036
Karta technických údajov
Už sa nevyrába
INFORMÁCIE O PRODUKTE
VýrobcaDESCO EUROPE / VERMASON
Výrobcovo č. položky28500
Objednávací kód2062036
Karta technických údajov
Lead Length4.5m
Ground Cord ColourYellow
Ground TerminalsSnap
End To Ground Resistance1Mohm
Product Range-
SVHCTo Be Advised
Prehľad produktu

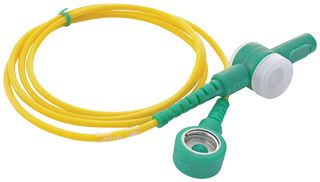

The 28500 is a 4.5m common point Ground Wire with polyurethane insulation and Ø2.5mm 7 tinsel wires conductor. The body housing shall have a combination of 10mm male snap, 10mm female snap and banana receptacle with 1MΩ resistor joined in series while the other end is 10mm female snap. The ground ends of the cord shall have a nylon single material moulding for both moulded body and strain relief. The cord conductor shall have an end to end resistance of not greater than 50Ω. The tensile strength of the end connections shall be not less than 66% of the tensile strength of the wire and in no case shall it be less than 5lbs.
- Moulded ends and chips in PMS340 green colour
- Exceeds 20000 cycles of bending life test without any physical damage on the strain relief
- 1 to 5lbs Pull away force is required to disconnect the snap in a normal disconnect direction
Aplikácie
Safety
Technické údaje
Lead Length
4.5m
Ground Terminals
Snap
Product Range
-
Ground Cord Colour
Yellow
End To Ground Resistance
1Mohm
SVHC
To Be Advised
Technické dokumenty (1)
Súvisiace produkty
Počet nájdených produktov: 1
Legislatíva a životné prostredie
Krajina pôvodu:
Krajina, v ktorej boli vykonané posledné úpravy pred uvedením do predajaKrajina pôvodu:China
Krajina, v ktorej boli vykonané posledné úpravy pred uvedením do predaja
Krajina, v ktorej boli vykonané posledné úpravy pred uvedením do predajaKrajina pôvodu:China
Krajina, v ktorej boli vykonané posledné úpravy pred uvedením do predaja
Č. tarifu:85444290
US ECCN:EAR99
EU ECCN:NLR
V súlade s normou RoHS:Áno
RoHS
V súlade s požiadavkami smernice RoHS týkajúcimi sa ftalátov:Áno
RoHS
SVHC:To Be Advised
Prevziať certifikát zhody produktu
Certifikát zhody produktu
Hmotnosť (kg):.042638
