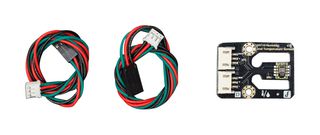

DFR0066

Combined module based around the SHT1x sensor to ensure highly accurate measurement of both humidity and temperature. The compact size and low power consumption makes this sensor ideal for a range of demanding applications.

• Precision calibration for superior accuracy, calibration coefficients are programmed into memory and used to internally calibrate the signals from the sensors
• Temperature Range: -40°C to +128.8°C
• Temperature Accuracy: ±0.5°C
• Humidity Range: 0-100% RH
• Humidity Accuracy: ±4.5% RH
• Operating Voltage: 3.3-5V
• Internal voltage regulation
• 2 Wire serial interface
• Board Size: 32x27mm

Aplikácie

Embedded Design & Development, Electronics Design, IoT (Internet of Things), Hobby & Education
