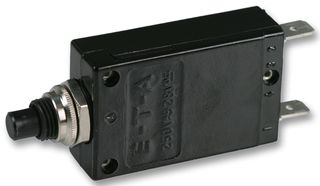

2-5700-IG1-P10-DD-000040 1A

The 2-5700 series single-pole thermal Circuit Breaker with press-to-reset, tease-free, trip-free and snap action mechanism. It is available with optional manual release (-H), type 2-5700 can be supplied as a push-push switch/circuit breaker (R-type to CBE to EN 60934 in press-to-reset configuration, M-type when fitted with manual release -H, S-type with push-push operation). Fitted with flange or thread-neck for panel mounting. Options include an additional unprotected circuit tap (-A3). It is suitable for use with transformers, solenoids, battery chargers, appliances, machinery and extra low voltage systems.

• <gt/>100MΩ at 500VDC Insulation resistance
• IP40/IP00 Protection rating
• -20 to 60°C Ambient temperature range

Aplikácie

Motor Drive & Control, Power Management, Consumer Electronics, Industrial
