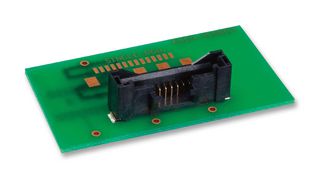

DF50A-4P-1V(51)

The DF50 series 1mm Board to Wire Lock Connector features locking function and contact mating occur simultaneously, for a clearer tactile click. Thick and robust housing wall provides higher strength against cracking. Insertion depth for mating housings protects against wrenching. The high lance strength by mating with crimp contact on the surface. Adequate adsorption area is ensured despite the small size, allowing for automatic mounting without adsorption cap.

• Provides clear tactile click and secure mating
• Robust structure resistant to wrenching forces
• Robust and reliable lance structure
• Ensured adsorption area eliminates the need for adsorption cap
• Insulation outer diameter 0.9mm, compatible with 28AWG wire
• 30mΩ Contact resistance (maximum)

Aplikácie

Industrial

Upozornenia

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
