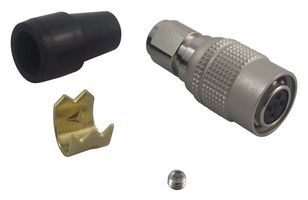

HR10A-7P-4S(73)

The HR10A-7P-4S(73) is a 4-contact push-pull Circular Connector with silver-plated contacts, plug shell and female terminal. The HR10A-7P-4S(73) connector is push-pull coupling type micro-connectors. This connector has been developed in response to customers' needs for miniaturization, high density and easy handling. The HR10A-7P-4S(73) connector offers lightweight and assure high reliability and durability as well as easy push-pull operation. This connector is most suitable for portable electronic equipment which requires good appearance.

• Little giant
• Five-key system permits only one way of coupling
• Connector pin is located to avoid any damage which may be caused when blind mating
• Space-saving push-pull mechanism facilitates multi-installation of connectors
• Easy wiring and mounting
• Simple and well designed connectors with matte finish enhance appearance of equipment

Aplikácie

Portable Devices

Upozornenia

Switch off power of circuit before disconnecting or plugging-in connector. Use a connector with socket contacts at power side of circuit. Make sure that coupling is in completely cocked position.
