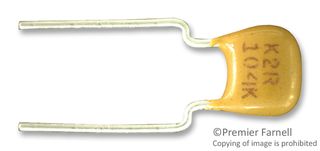

C322C104K1R5TA

The KEMET Goldmax series are radial leaded, standard Goldmax multilayer ceramic capacitor with X7R dielectric material. MLCCs are monolithic devices that consist of laminated layers of specially formulated ceramic dielectric materials interspersed with metal electrode system. The layered formation is then fired at high temperature to produce a sintered and volumetrically efficient capacitance device. A conductive termination barrier system is integrated on the exposed ends of the chip to complete the connection.

• Radial leaded form factor
• Non-polar device, minimizing installation concerns
• Capacitance change is limited to ±15% from −55°C to +125°C.
• Radial leaded form factor & Conformally coated
• Dimension is 5.08mm x 6.60mm (L x H)
• 5.08 pitch spacing
• Epoxy encapsulated
• Capacitance change is limited to ±15% from −55°C to +125°C.
• Operating temperature range from -55°C to 125°C

Aplikácie

Industrial, Power Management, Consumer Electronics, Portable Devices
