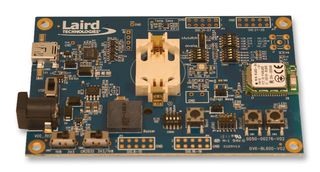

DVK-BL600-SA

The DVK-BL600-SA development board is a universal development tool to highlight the capabilities of the BL600-SA module. The development kit is supplied in a default configuration which should be suitable for multiple experimentation options. It also offers a number micro-DIP switches that help isolate on-board sensors and UART from the BL600-SA module to create different configurations. This allows you to test different operating scenarios. The development board allows the BL600 series module to physically connect to a PC via the supplied USB cable for development purposes. The development board provides USB-to-Virtual COM port conversion through a FTDI chip.

• USB to UART bridge (FTDI chip).
• Two Buttons and two LEDs for user interaction.
• Two on-board sensors (analogue output): Temperature and Trim Pot.
• Power supply options: USB, external DC supply or 3AAA batteries

Aplikácie

Embedded Design & Development, Wireless, Test & Measurement

Obsah

Dev Board BL600, DC Barrel Plug, IDC Cable, Pin Headers, Segger JTAG Board, USB Cable, Web link Card
