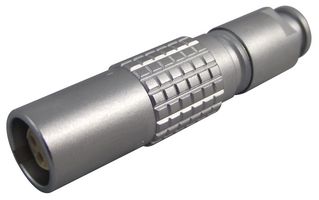

PHG.0B.304.CLLD52Z

The PHG.0B.304.CLLD52Z is a 4-way Circular Connector, 0B series, free receptacle with cable collet and nut for fitting a bend relief. Single key, male (plug) contacts and female (socket) contacts. Push-pull self-latching system with four solder contacts. Chrome-plated brass shell and collet nut, nickel plated brass latch sleeve and mid pieces. The modular design of the 0B series connector offers a solution for most applications. The push pull latching mechanism provides a secure connection whilst the density of the contacts provides for considerable panel space savings. Multi key options prevent cross mating of similar connectors within a panel. The ruggedized design combined with precision manufacturing offers excellent durability, reliability and quality.

• 7A Current rating
• PEEK insulator
• G Key standard
• IP50 Protection rating
• 5000 Maximum matings
• 6.1mΩ Maximum resistance
• 0.7mm Contact diameter
• 360° Screening for full EMC shielding
• 4 Low voltage insert configuration

Aplikácie

Test & Measurement, Medical, Aerospace, Defence, Military, Automotive, Communications & Networking
