MT41K512M16VRP-107 IT:P

MT41K512M16VRP-107 IT:P is a TwinDie 1.35V automotive DDR3L SDRAM. It is a high-speed, CMOS dynamic random access memory device internally configured as two 8-bank DDR3L SDRAM devices. The DDR3L SDRAM uses a double data rate architecture to achieve high-speed operation. The double data rate architecture is an 8n-prefetch architecture with an interface designed to transfer two data words per clock cycle at the I/O balls. A single read or write access consists of a single 8n-bit-wide, one-clock-cycle data transfer at the internal DRAM core and eight corresponding n-bit-wide, one-half-clock-cycle data transfers at the I/O balls. The DDR3 SDRAM operates from a differential clock (CK and CK#). The crossing of CK going HIGH and CK# going LOW is referred to as the positive edge of CK. Control, command, and address signals are registered at every positive edge of CK.

• Backward compatible to VDD = VDDQ = 1.5V ±0.075V
• Differential bidirectional data strobe, 8n-bit prefetch architecture
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Programmable CAS (READ) latency (CL), programmable posted CAS additive latency (AL)
• Fixed burst length (BL) of 8 and burst chop (BC) of 4 (via the mode register set [MRS])
• Self refresh temperature (SRT), automatic self refresh (ASR), write levelling
• AEC-Q100, PPAP submission, 8D response time

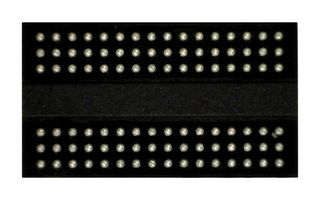

• 96-ball FBGA package
• Industrial temperature range from -40°C ≤ TC ≤ +95°C
• 1.07ns at CL = 13 (DDR3-1866) cycle time, 512 Meg x 16 configuration
