92315-1225
Ribbon Cable, PF50 Receptacle to PF50 Receptacle, 12 Ways, 9.9 ", 250 mm, 1.27 mm
2 000 Teraz si môžete rezervovať tovar na sklade.
| Množstvo | |
|---|---|
| 1+ | 2,180 € |
| 10+ | 1,660 € |
| 100+ | 1,390 € |
| 250+ | 1,310 € |
| 500+ | 1,240 € |
| 1000+ | 1,180 € |
INFORMÁCIE O PRODUKTE
Prehľad produktu

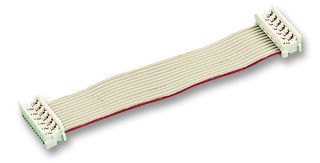

The 92315-1225 is a 250mm 12-way natural Picoflex® Ribbon Cable with a female PF-50 IDT connector on each end. The 92315 series cable is made of PVC. The connector contacts are made of phosphor bronze. A strong one-piece upper housing provides excellent cable retention and is ideal for small circuit size applications. The high-reliability contact features a four-point interface with the cable and two points of contact between the header and receptacle. Picoflex also offers excellent polarization to both the PCB and between the female connector and header. It mates with 90325, 90800, 90779, 90715 and 90814 headers.
- 250V Maximum voltage
- 1.2A Maximum current per contact
Aplikácie
Automotive, Consumer Electronics, Communications & Networking, Industrial, Medical
Technické údaje
PF50 Receptacle to PF50 Receptacle
PF50 Receptacle
9.9"
1.27mm
-
No SVHC (21-Jan-2025)
PF50 Receptacle
12Ways
250mm
Picoflex 92315 Series
0.635mm
Technické dokumenty (4)
Súvisiace produkty
Počet nájdených produktov: 1
Legislatíva a životné prostredie
Krajina, v ktorej boli vykonané posledné úpravy pred uvedením do predajaKrajina pôvodu:Poland
Krajina, v ktorej boli vykonané posledné úpravy pred uvedením do predaja
RoHS
RoHS
Certifikát zhody produktu
