76-060

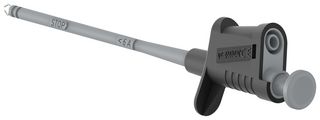

The 76-060 from Tenma is a black colour pincer clip with 4mm female banana jack (socket). It is used to grasp conductive parts safely to measure voltages, general purpose electric and electronic testing, controlling and measuring. It has electrical safety according to EN/IEC 61010-031:2008. 1000V CAT II, reinforced insulation, 6A (at +40°C). With the flat end of the stem and shape of clip various target items can be clenched and electrical contact is reliable.

• Nickel coated steel, steel and brass conductor material
• Overall length is 162mm
• 95mm of flexible stem and opening up to 4mm
• Overall height is 39mm, overall width is 15mm
• Operating temperature range from -20°C to +80°C
• Pollution degree 1 or 2
• European union marking, hand stop barrier marking, voltage marking and current marking on lead
• 12 month limited warranty *view Terms & Conditions for details

Upozornenia

Keep behind the barriers of alligator clip to operate safely while connecting to hazardous live voltages (more than 33VAC and 70VDC).
