FTD0904

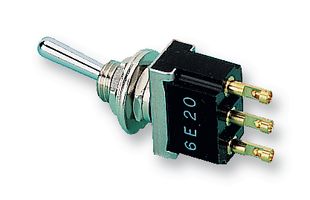

The FTD0904 is a single-pole double-throw (SPDT) miniature Toggle Switch with vertical actuation and baton standard toggle style. The F series toggle switch comes with copper alloy base and silver-plated contact. The F Series switches offer high performance industrial toggles with high current and high voltage rating in a small case. The F Series encompasses SPDT contact configuration with a choice of momentary or maintained circuits. Electrical life is rated from 25,000 to 50,000 cycles at full load. The F series switches are panel mounted with 6.0mm threaded bushing conforming to standard panel cut outs and are constructed of brass with chrome plating.

• UL94V-0 Flammability rating
• Waterproof
• Black colour
• Lead wire-hooking type, vertical termination

Aplikácie

Industrial, Medical, Sensing & Instrumentation
