CT1

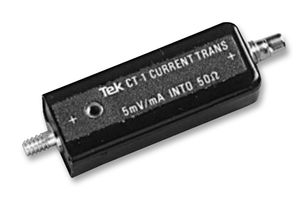

The CT1 is a Current Probe designed for permanent or semi-permanent in-circuit installation. Each probe consists of a current transformer and an interconnecting cable. The current transformers have a small hole through which a current carrying conductor is passed during circuit assembly. The P6041 Probe Cable provides the connection between the CT1 and CT2 current transformers and a BNC oscilloscope input. A 50Ω termination is required to terminate the cable when connected to a high-impedance (1MΩ) oscilloscope input. One probe cable can be used to monitor several current transformers that have been wired into a circuit.

• High bandwidth
• Ultra-low inductance
• Very small form factor
• Characterize current waveforms up to <lt/> <lt/>200ps rise times
• Very low loading of circuit under test
• Fits into dense, closely-spaced circuit designs

Aplikácie

Test & Measurement, Industrial
