DEMO9RS08KA8

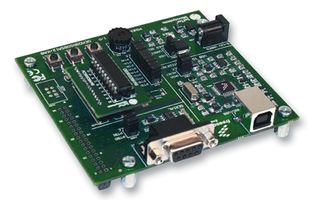

The DEMO9RS08KA8 demonstration board has been designed for the evaluation, demonstration and the debugging of the NXP RS08KA8 microcontroller. DEMO9RS08KA8/4 board's built in circuitry and USB programmer interface included reduces hardware interface development time and allows faster code evaluation.

• A MC9RS08KA8 microcontroller (in 20Pin DIP package, already programmed with a demo application)
• A provision for a low frequency crystal
• A 12V DC power supply input connector
• Power input selection jumper for selecting the input voltage source
• A built in USB to BDM
• An RS232 transceiver (with a DB9 female connector)
• A 36pin I/O female header connector on the bottom of the board
• A series of inputs
• A reset push button connected to the MCU reset pin

Aplikácie

Consumer Electronics, Industrial, Medical, Motor Drive & Control, Lighting, Hobby & Education

Obsah

The DEMO9RS08KA8 board (composed by the DEMO9RS08SA12/KA8 board + the DB9RS08KA8 adapter, already plugged in), A USB cable, SofTec Microsystems System Software CDROM, CodeWarrior Development Studio Special Edition CD-ROM, Quick Start Guide sheet, registration card, user's manual.
