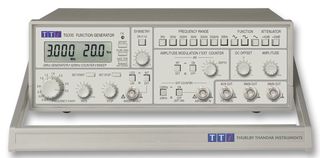

TG330

The TG330 includes dual digital display of frequency and amplitude, along with the basic generator functions of sine, square & triangle waveforms, variable DC offset, variable symmetry and an external sweep input. The TG330 adds an external frequency counter with up to 7 digits of resolution covering 5Hz to 120MHz. Plus an internal sweep generator with linear or log sweep, variable sweep rate and a sweep output socket. It also offers internal or external amplitude modulation.

• 0.03Hz to 3MHz frequency range
• Simultaneous display of frequency & amplitude
• External 7 digit 120MHz frequency counter
• Very high waveform quality at all frequencies & levels
• 2mV to 20V pk-pk from 50 or 600
• Auxiliary TTL/CMOS output
• Variable symmetry with constant frequency
• Variable DC offset with zero detent
• 1000:1 frequency change by vernier or sweep voltage
• Precision internal linear or logarithmic sweep
• Internal or external amplitude modulation

Aplikácie

Sensing & Instrumentation, Signal Processing, Test & Measurement

Poznámky

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
