72-3555

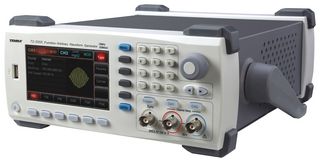

Function/arbitrary waveform generator with 4.3" TFT LCD display (480 x 272).

• CAT II 300V safety standards
• 6 digit high precision frequency meter compatible with TTL level signal
• Easy to use operating panel
• USB device and USB host interface
• Sine, square, ramp, triangle, pulse, noise, DC, arb supported waveforms
• 25MHz sine wave output, down to 1μHz resolution for full frequency range
• 125MS/s max sample rate, 14bits vertical resolution and 8Kpts max arbitrary memory depth
• 5MHz pulse waveform with adjustable rise and fall time and duty cycle
• Powered by 100-240VAC (50Hz/60Hz)
• 12-month limited warranty *view Terms & Conditions for details
• UK type G and Euro type E / F (Schuko) mains plugs
• Supplied with UK Type G & Euro Type E/F Power Cord

Aplikácie

Test & Measurement

Obsah

Function generator, BNC cable, Power cord, USB cable, Instruction manual.

Poznámky

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
